A Guide to Square Suspension U-Bolts Specifications

camille lebloa By camille lebloa October 14, 2024 12 Min Read
Share
A Guide to Square Suspension U-Bolts Specifications

Suspension systems are critical to the functionality and safety of vehicles and equipment. Among the various components that ensure the smooth and safe operation of a vehicle’s Square Suspension U-Bolts Specifications play a crucial role. These fasteners help hold the leaf springs or other suspension components to the axle, allowing the vehicle to operate correctly even under the toughest conditions.

Contents
Table of Contents:What Are Suspension U-Bolts?Understanding U-Bolt SpecificationsThread Diameter: 1/2″Width: 2-1/2″Length: 7-1/2″Square vs. Round U-BoltsApplications of U-Bolts in Suspension SystemsMaterial Composition: Why It MattersCommon Materials Used in U-BoltsCorrosion Resistance and CoatingsHow to Install Suspension U-BoltsStep-by-Step Installation GuideTorque Settings and Importance of Proper TighteningU-Bolt Maintenance and InspectionCommon Issues and Troubleshooting with U-BoltsPurchasing U-Bolts: Key Factors to ConsiderConclusion: The Importance of U-Bolts in Vehicle Safety

In this comprehensive guide, we will explore suspension U-bolts, with a focus on the specific configuration of Square Suspension U-Bolts Specifications. We will discuss their importance, applications, materials, installation procedures, and maintenance tips. Whether you’re an auto enthusiast, a mechanic, or someone involved in heavy-duty vehicle repair or maintenance, understanding U-bolts is crucial for ensuring optimal suspension performance.

Table of Contents:

  1. What Are Suspension U-Bolts?
  2. Understanding U-Bolt Specifications
    • Thread Diameter: 1/2″
    • Width: 2-1/2″
    • Length: 7-1/2″
    • Square vs. Round U-Bolts
  3. Applications of U-Bolts in Suspension Systems
  4. Material Composition: Why It Matters
    • Common Materials Used in Square Suspension U-Bolts Specifications
    • Corrosion Resistance and Coatings
  5. How to Install Suspension U-Bolts
    • Step-by-Step Installation Guide
    • Torque Settings and Importance of Proper Tightening
  6. U-Bolt Maintenance and Inspection
  7. Common Issues and Troubleshooting with U-Bolts
  8. Purchasing U-Bolts: Key Factors to Consider
  9. Conclusion: The Importance of U-Bolts in Vehicle Safety

What Are Suspension U-Bolts?

Square Suspension U-Bolts Specifications are a type of fastener that is shaped like the letter “U,” with two threaded arms extending from the base. They are used primarily to secure the axle of a vehicle to its leaf springs, which are part of the suspension system. The U-bolts effectively clamp the leaf spring to the axle, ensuring that the suspension can handle the vehicle’s load and navigate various terrains.

The suspension system of any vehicle relies heavily on the strength and durability of U-bolts. Without properly installed and maintained Square Suspension U-Bolts Specifications, a vehicle’s suspension could fail, leading to misalignment of the axle, poor handling, or even catastrophic failure in extreme cases.

Understanding U-Bolt Specifications

A Guide to Square Suspension U-Bolts Specifications

When selecting U-bolts for your vehicle’s suspension, it’s essential to understand the various specifications, such as the thread diameter, width, length, and shape. For our specific case, we are looking at Square Suspension U-Bolts Specifications. Let’s break down these elements:

Thread Diameter: 1/2″

The thread diameter refers to the thickness of the U-bolt’s threaded arms. A 1/2″ thread diameter is a common size for many mid-sized to heavy-duty vehicles. It provides a balance between strength and flexibility, making it ideal for suspending medium to large loads securely. The threads allow the U-bolt to engage with nuts, applying pressure to hold the leaf spring securely to the axle.

Width: 2-1/2″

The width of the U-bolt, in this case 2-1/2″, is the distance between the two arms of the U-shape. This measurement is critical because it must match the width of the axle and the suspension components. A properly matched width ensures that the U-bolt fits snugly and doesn’t allow for excessive movement, which could cause the suspension to become unstable.

Length: 7-1/2″

The length of the U-bolt is the measurement from the inside of the U to the end of the threaded arms. A 7-1/2″ length provides ample threading to securely fasten the suspension components together, while still leaving enough room for any adjustments that may need to be made. This length is commonly used in suspension systems where a deeper fit is required.

Square vs. Round U-Bolts

U-bolts come in two main shapes: square and round. The square U-bolts, such as the one we’re discussing, are primarily used for square-shaped axles or components. They offer a more stable connection on flat surfaces, which is critical in many suspension setups. On the other hand, round U-bolts are used for round axles, such as those found on certain types of trucks and trailers.

Applications of U-Bolts in Suspension Systems

U-bolts have a wide range of applications in vehicle suspension systems, particularly in trucks, trailers, off-road vehicles, and heavy-duty machinery. Their primary function is to hold the leaf springs (or other suspension components) to the axle. This ensures that the axle stays in place and moves as intended with the suspension, helping to distribute the vehicle’s load evenly and providing a smooth ride.

Here are some common applications:

  • Trucks: U-bolts are used in both light-duty and heavy-duty trucks to secure the leaf springs to the axle.
  • Trailers: Trailers, especially those designed to carry heavy loads, rely on U-bolts to keep the suspension and axle in place.
  • Off-Road Vehicles: In off-road vehicles, U-bolts are critical for ensuring that the suspension can handle the stresses of rough terrain.
  • Heavy Machinery: Construction equipment and other heavy machinery use U-bolts to maintain suspension integrity.

Read More = steno mask over talk

Material Composition: Why It Matters

The material from which Square Suspension U-Bolts Specifications are made plays a significant role in their durability, strength, and resistance to corrosion. Suspension U-bolts are often made from high-strength steel, but there are several variations depending on the intended use and environment.

Common Materials Used in U-Bolts

  • Carbon Steel: Carbon steel U-bolts are commonly used in standard applications. They offer good tensile strength and durability but may require additional coatings to resist corrosion.
  • Stainless Steel: For applications in environments where rust and corrosion are concerns, stainless steel Square Suspension U-Bolts Specifications are an excellent choice. They are more expensive but offer superior longevity and performance in harsh conditions.
  • Alloy Steel: Alloy steel U-bolts are stronger and more resistant to wear, making them ideal for heavy-duty applications where high strength is required.

Corrosion Resistance and Coatings

Many U-bolts are coated with materials such as zinc or galvanization to improve their resistance to corrosion. In industries where exposure to moisture, salt, or chemicals is common, these coatings ensure that the U-bolt can withstand harsh environments without deteriorating.

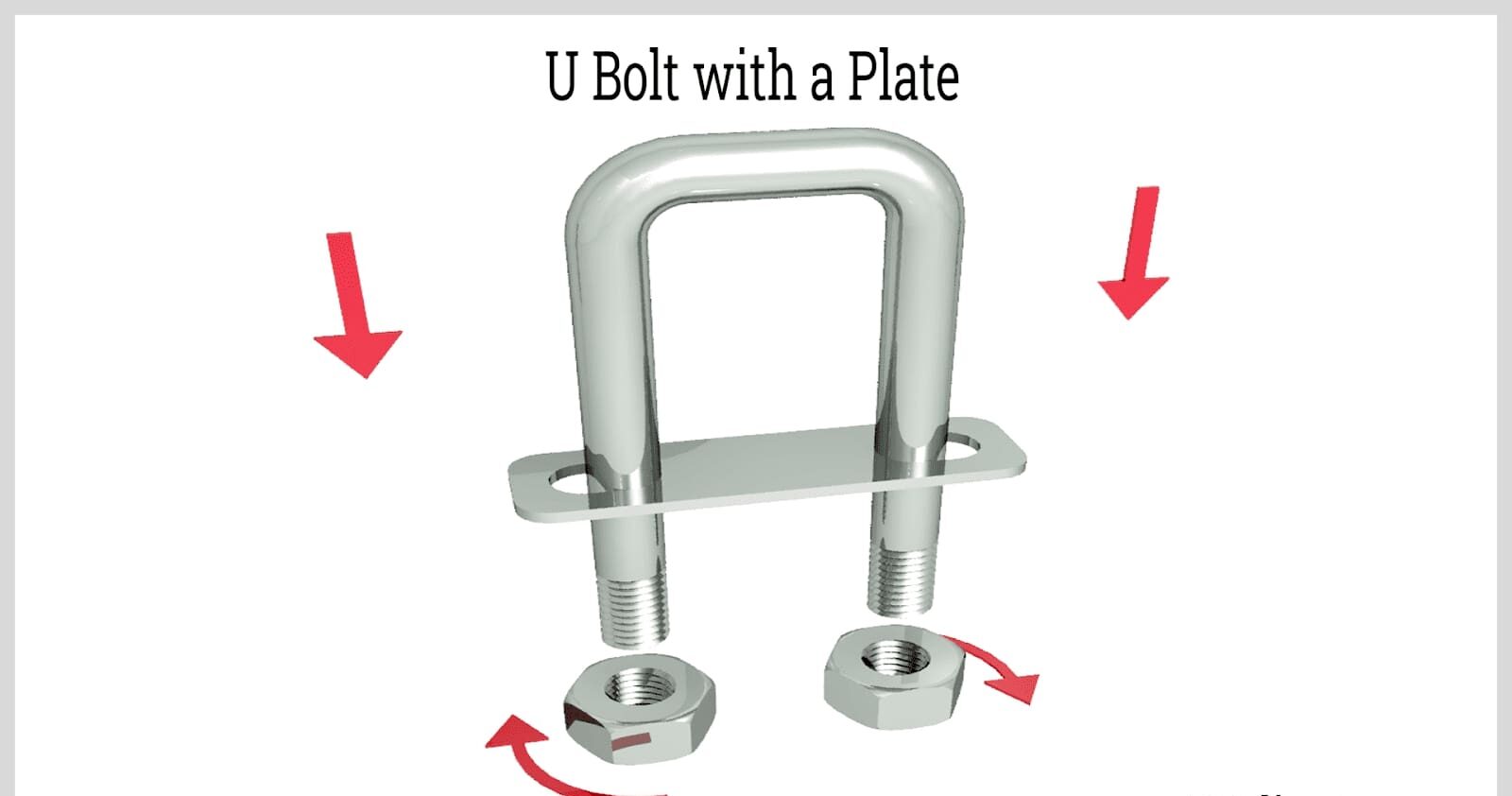

How to Install Suspension U-Bolts

A Guide to Square Suspension U-Bolts Specifications

Proper installation of U-bolts is essential to ensure that the suspension system functions correctly. Incorrectly installed Square Suspension U-Bolts Specifications can lead to axle misalignment, uneven tire wear, and, in the worst-case scenario, suspension failure.

Step-by-Step Installation Guide

  1. Preparation: Before installation, ensure that the axle and leaf springs are aligned properly. Clean the contact surfaces to remove any dirt or debris that could interfere with the connection.
  2. Position the U-Bolt: Place the U-bolt around the axle and through the leaf spring bracket. Ensure the bolt sits evenly on both sides of the axle.
  3. Insert the Nuts: Hand-tighten the nuts onto the threads of the U-bolt. Make sure that the U-bolt is seated correctly, with equal spacing on both sides of the axle.
  4. Tightening the Nuts: Using a torque wrench, tighten the nuts evenly, alternating from one side to the other. This ensures even pressure on the axle and leaf spring. Refer to the vehicle’s specifications for the correct torque settings.

Torque Settings and Importance of Proper Tightening

One of the most important aspects of U-bolt installation is ensuring that the nuts are tightened to the correct torque. Over-tightening or under-tightening can cause premature wear or failure of the suspension system. Each vehicle will have specific torque settings, so it’s crucial to consult the manufacturer’s guidelines before installing Square Suspension U-Bolts Specifications.

U-Bolt Maintenance and Inspection

Regular maintenance and inspection of suspension U-bolts are essential to ensure the longevity of the suspension system. Over time, Square Suspension U-Bolts Specifications may become loose or corroded, especially in vehicles that are used in harsh environments or carry heavy loads.

Inspection Checklist:

  • Visual Inspection: Look for any signs of corrosion, rust, or damage to the U-bolt and surrounding components.
  • Check Torque: Periodically check the torque of the U-bolt nuts to ensure they are still properly tightened.
  • Replace When Necessary: If a U-bolt shows signs of wear, damage, or corrosion, it’s important to replace it immediately to prevent suspension failure.

Common Issues and Troubleshooting with U-Bolts

Some common problems associated with Square Suspension U-Bolts Specifications include:

  • Loose U-Bolts: Square Suspension U-Bolts Specifications can loosen over time due to the vibrations and loads placed on the vehicle. Regularly checking the torque is essential to prevent this issue.
  • Corrosion: Corrosion weakens the U-bolt, potentially leading to failure. Using corrosion-resistant materials or coatings can prevent this issue.
  • Incorrect Sizing: Using Square Suspension U-Bolts Specifications that are too long, too short, or too wide for your application can result in poor performance or even damage to the vehicle’s suspension.

Purchasing U-Bolts: Key Factors to Consider

When purchasing U-bolts for your vehicle or machinery, there are several key factors to keep in mind:

  • Material: Choose the right material for your application, whether it’s carbon steel, stainless steel, or alloy steel.
  • Dimensions: Ensure the Square Suspension U-Bolts Specifications fit your axle and suspension system’s specifications.
  • Coating: Consider coated or galvanized U-bolts for applications where corrosion is a concern.
  • Torque Specifications: Ensure that the U-bolts you purchase come with the correct torque specifications for installation.

Conclusion: The Importance of U-Bolts in Vehicle Safety

In summary, Square Suspension U-Bolts Specifications a critical role in maintaining the safety and performance of a vehicle’s suspension system. By understanding their specifications, applications, material composition, and proper installation procedures, you can ensure that your vehicle or machinery operates smoothly and safely.

Regular maintenance and inspection of U-bolts can prevent potential issues such as axle misalignment, uneven tire wear, and suspension failure. Whether you’re maintaining a truck, trailer, or heavy-duty equipment, investing in high-quality U-bolts and following best practices for installation will lead to better performance and longevity.

By recognizing the importance of U-bolts and taking the necessary steps to care for them, you’re helping to protect not just your vehicle, but also the safety of everyone on the road.
